Home > Products > Fluid Solenoid Valve > Pneumatic Operated 2-Way Valves

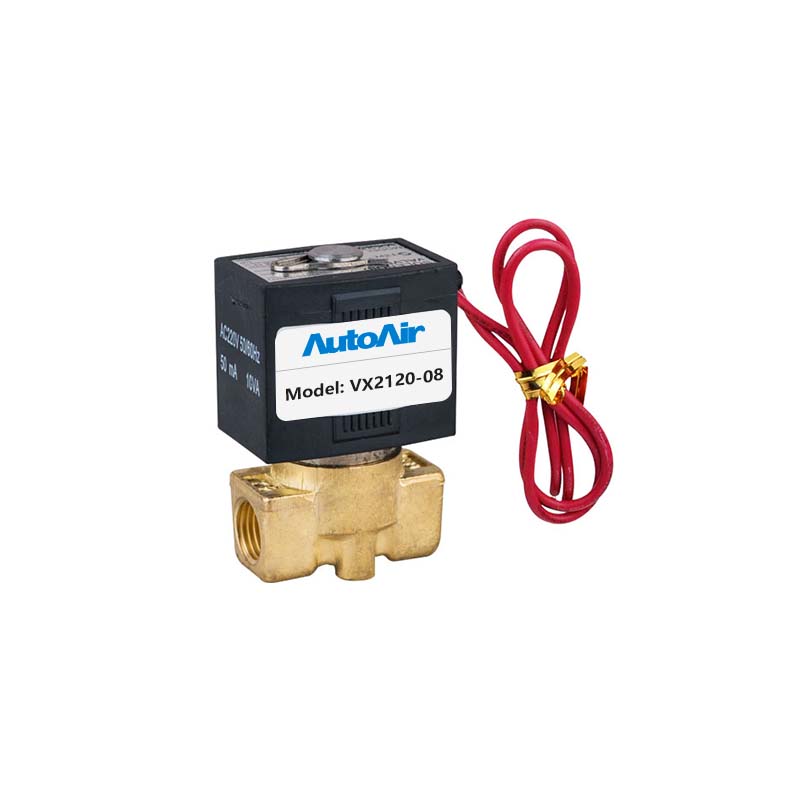

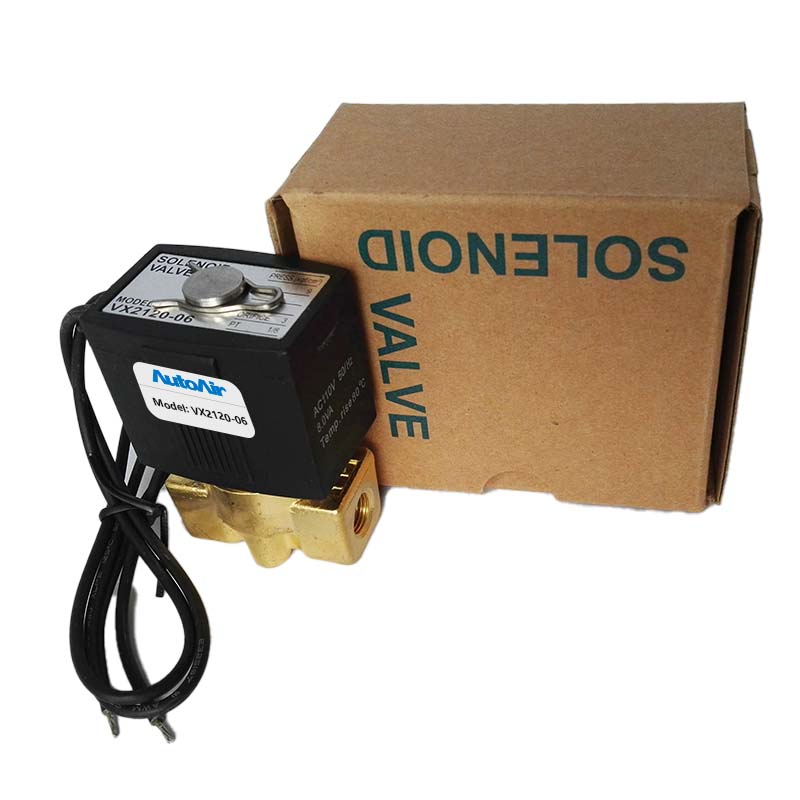

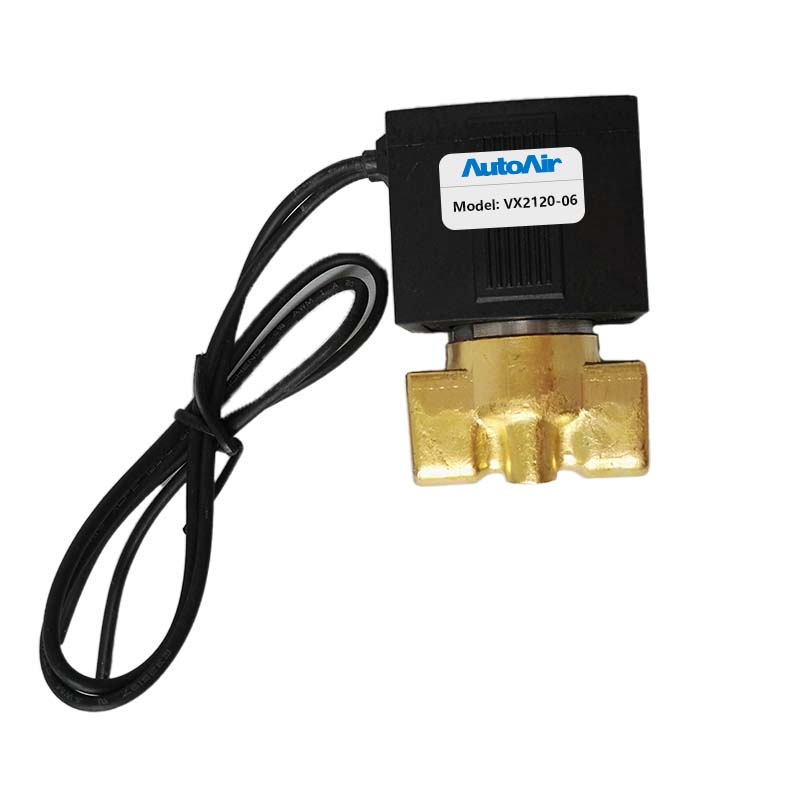

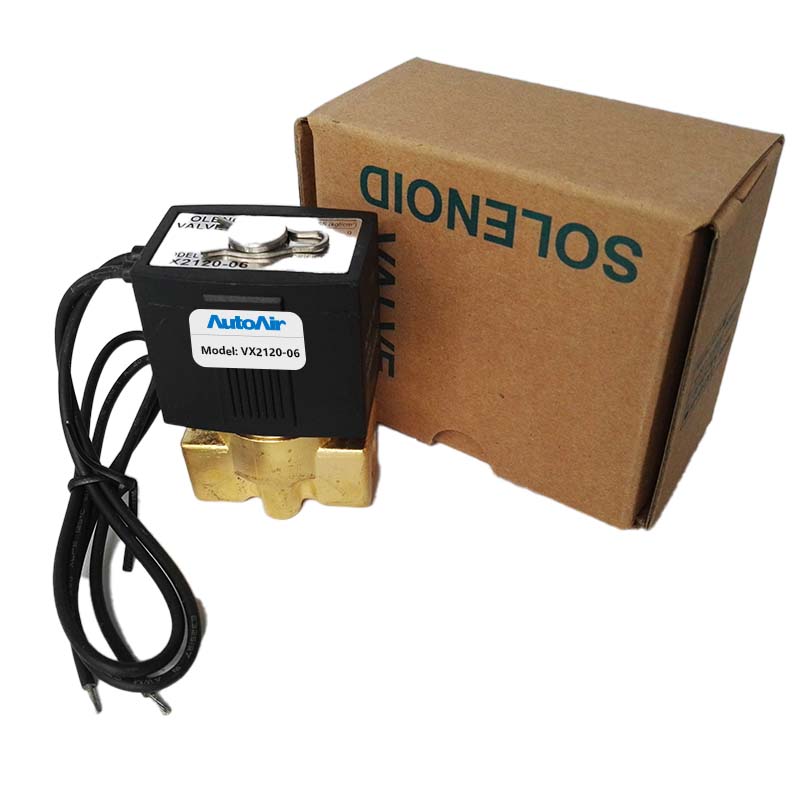

VX Series 2/2 Way Solenoid Valve

< >

VX Series 2/2 Way Solenoid Valve

Working Medium	Air Water Steam
Motion Pattern	Direct Drive Type
Type	Normal Close Type
Working-pressure MPa	0~1.0MPa

~~Consult Immediately~~

Product Details

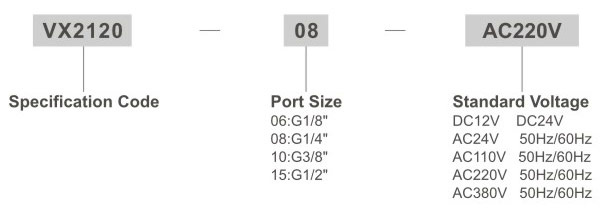

Ordering Code

Specification

Model	VX2120-06	VX2120-08	VX2120-10	VX2120-15
Working Medium	Air Water Steam
Motion Pattern	Direct Drive Type
Type	Normal Close Type
Working-pressure MPa	0~1.0MPa
Aperture of Flow Rate(mm)	3		13
Joint Pipe Bore	1/8″	1/4″	3/8″	1/2″
Operating Temperature ℃	-5~150℃		-5~80℃
Material of Oil Seal	VITON		NBR

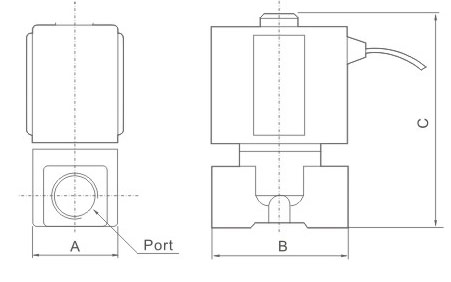

Overall Dimensions

Model	Bore	A	B	C
VX2120-06	G1/8″	26	40	66
VX2120-08	G1/4″	26	40	66
VX2120-10	G3/8″	40	68	80
VX2120-15	G1/2″	47	68	88
