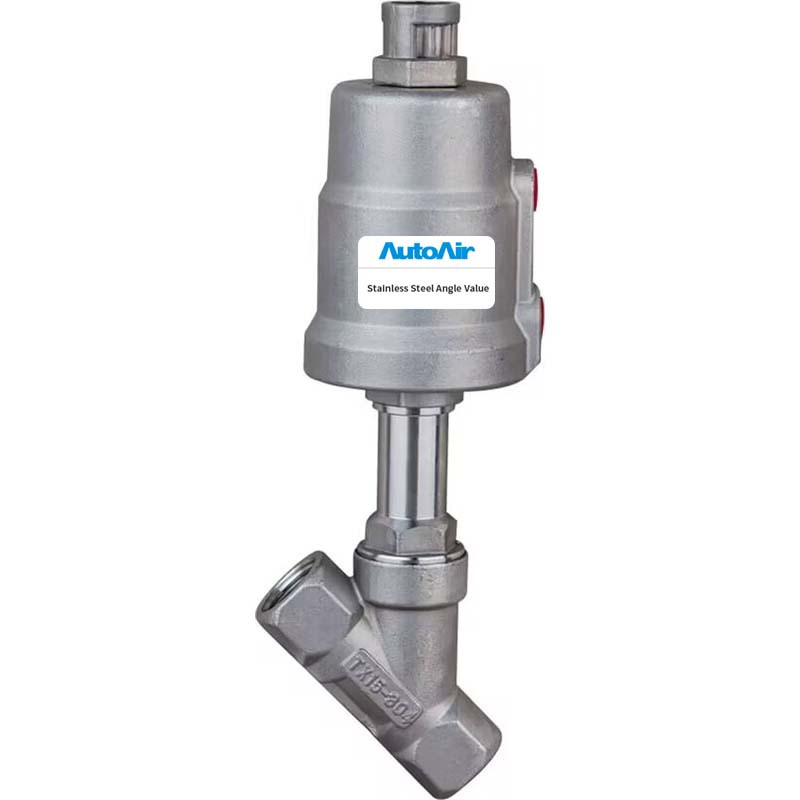

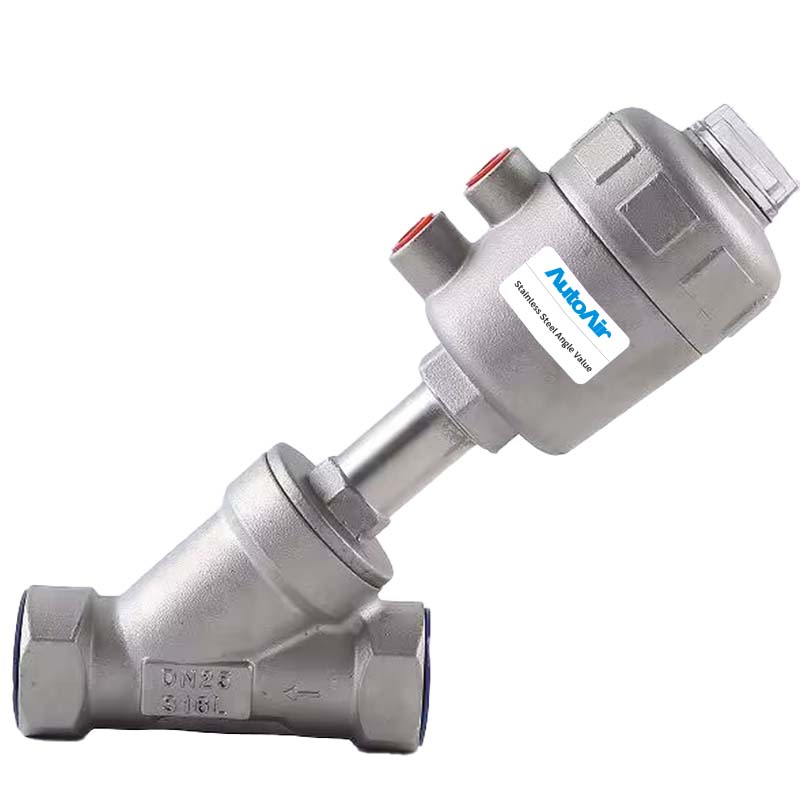

Full Stainless Steel Angle Valve

< >

Full Stainless Steel Angle Valve

Port size	DN10-DN50
Thread	G3/8 G2"
Welded	DIN11850 2 DIN11850 3 lSO2037
Valve bodv	CF8M
Actyator	CF8
Seat seals	PTFE

~~Consult Immediately~~

Product Details

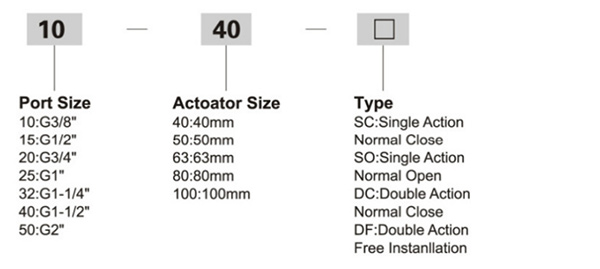

Ordering Code


Specification

Model	10-50SC/SO/DC/DF
Port size	DN10-DN50
Thread	G3/8 G2"
Welded	DIN11850 2 DIN11850 3 lSO2037
Valve bodv	CF8M
Actuator	CF8
Seat seals	PTFE
Stem seals	PTFE/FKM
Piston seals	FKM/NBR

Model	10-50SC/SO/DC/DF
Applicable medium	Water,liquid,neutral gas,water steam Slight corrosive gas and liquid
Temperature range	PTFE:-10 to +180℃
Ambient temperature	-10℃ to +60℃
Viscasity	max600mm2/s
Installation	Any position
Controlling medium	Air or neutral gas
Controlling pressure range	0.3-1M

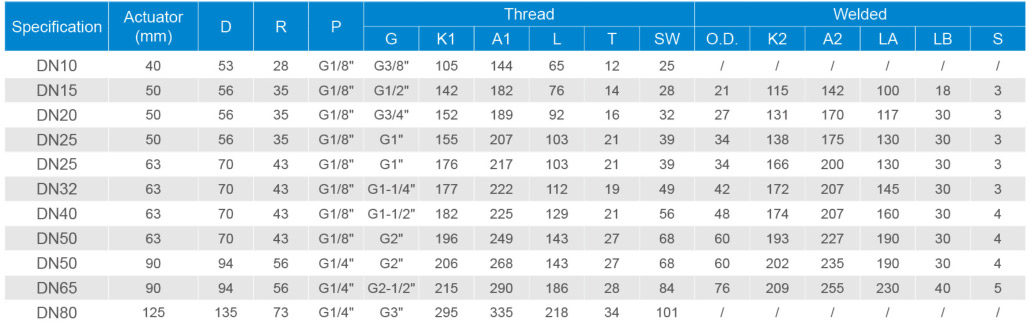

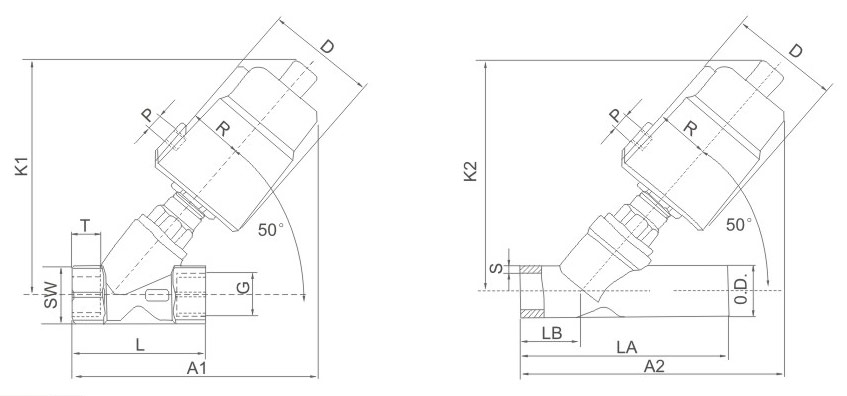

Overall Dimensions
