Home > Products > Fluid Solenoid Valve > Other Type Valves

Valve Accessories

< >

Valve Accessories

~~Consult Immediately~~

Product Details

Specification

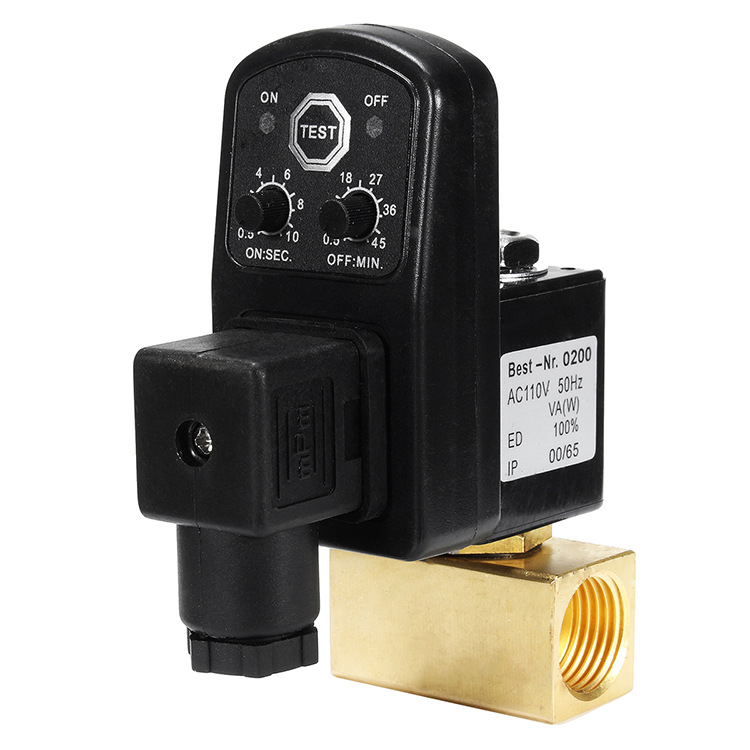

Model	Timer
Supply Voltage	24..240V AC/DC-50Hz/60Hz for "CE" marked Timer
Absorption Current	4mA Max
Operating Temperature	-10°C~+50°C
Class Protection	IP65-EN 60529
Switch Holding Voltage	400V Max
Switch Capacity	1A
Inrush Current	10A for 10 ms
Duty Cycle	100% ED
Switch Life	3X108

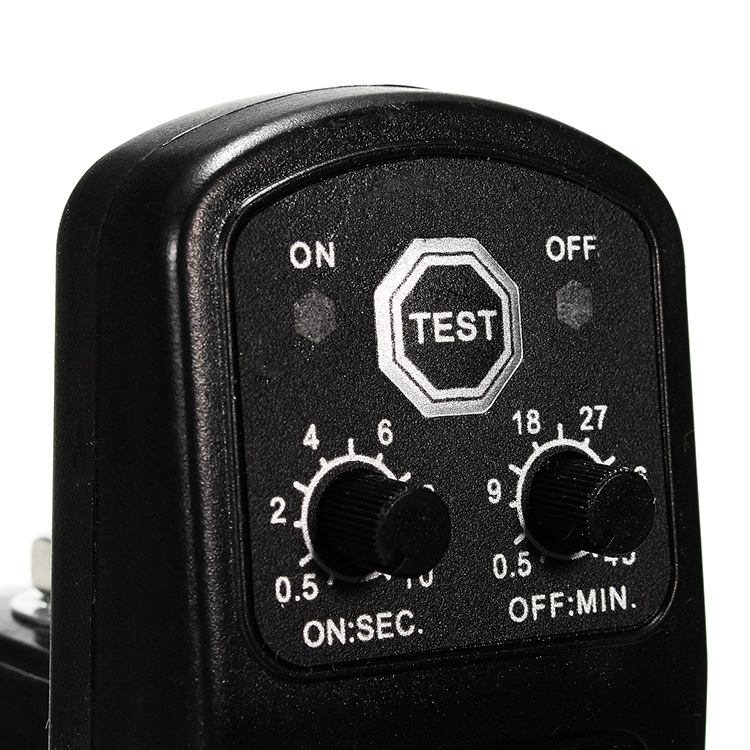

Time ON	from 0.5 to 10s
Time OFF	from 0.5 to 45 min
Indicators	Yellow LED
Manual Override	Test
Connection	DIN43650A
